Score instead of Distance

Last class we replaced distance by score

Distance has to be small, score has to be large

We replaced min by max

For global alignment it is the same

But for semi-global alignment it is different

What is the alignment?

We have seen how to calculate the optimal score

Needleman-Wunsh method tells us how to fill the matrix, and we read the score in the last corner.

But how do we find the alignment that produces that score?

Traceback

After we built the matrix, we must go back from the “optimal score” finding which was the path

There may be more than one solution

Some programs build the alignment at the same time they build the matrix, but that requires more memory

Traceback

Solution 1

GCAT-GCU
G-ATTACA

Solution 2

GCA-TGCU
G-ATTACA

Solution 3

GCATG-CU
G-ATTACA

Pseudocode to build the matrix

for i=0 to length(A)
  M[i,0] ← -GapPenalty*i
for j=0 to length(B)
  M[0,j] ← -GapPenalty*j
for i=1 to length(A)
  for j=1 to length(B)
  {
    Match ← M[i-1,j-1] + S[A[i], B[j]]
    Delete ← M[i-1, j] - GapPenalty
    Insert ← M[i, j-1] - GapPenalty
    M[i,j] ← max(Match, Insert, Delete)
  }

Pseudocode to get the alignment

AlignmentA ← ""
AlignmentB ← ""
i ← length(A)
j ← length(B)
while (i > 0 or j > 0)
{
  if (i > 0 and j > 0 and M[i,j] == M[i-1,j-1] + S[A[i], B[j]])
  {
    AlignmentA ← A[i] + AlignmentA
    AlignmentB ← B[j] + AlignmentB
    i ← i - 1
    j ← j - 1
  }
  else ...

Pseudocode to get the alignment

  ... if (i > 0 and M[i,j] == M[i-1,j] - GapPenalty)
  {
    AlignmentA ← A[i] + AlignmentA
    AlignmentB ← "-" + AlignmentB
    i ← i - 1
  }
  else
  {
    AlignmentA ← "-" + AlignmentA
    AlignmentB ← B[j] + AlignmentB
    j ← j - 1
  }
}

Wikipedia

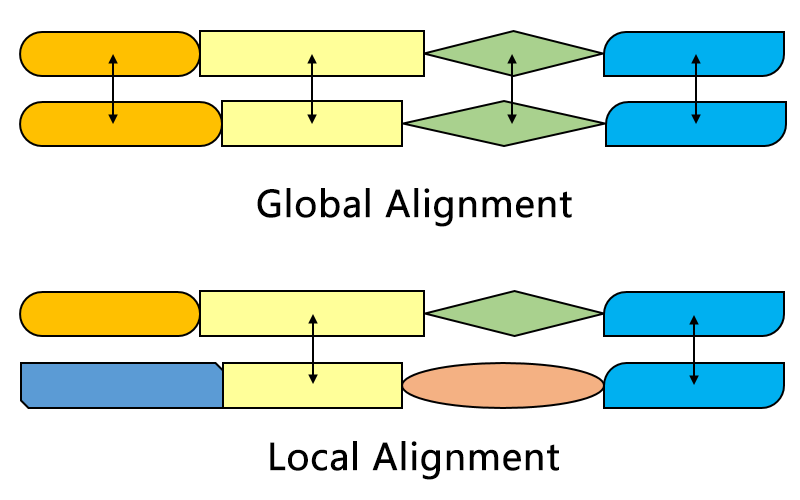

Global, Semi-Global and Local alignment

Global
all sequences must match.
Each gap is penalized
Semi-global
all sequences must match, but one may be shorter than the other.
external gaps are not penalized
Local
Some part of the sequence must match
external gaps are not penalized
can be with or without internal gaps

Global v/s local

Wikipedia

Global v/s local

Needleman–Wunsch algorithm Smith–Waterman algorithm
Goal Optimal Global Alignment Optimal Local Alignment
External Gaps First row and first column are subject to gap penalty First row and first column are set to 0
Scoring Score can be negative Negative score is set to 0
Traceback Begin with the cell at the lower right of the matrix, end at top left cell Begin with the highest score, end when 0 is encountered

Wikipedia

Smith Waterman method

Local alignment can be found using the method proposed by Temple F. Smith and Michael S. Waterman in 1981

Using dynamic programming we fill a matrix M[i,j]

M[i, j] = max(
              M[i-1, j-1] + C[q[i], s[j]],
              M[i-1, j] - G,
              M[i, j-1] - G,
              0)

No negative numbers

BLOSUM matrices

Using local alignment we can identify conserved regions

In 1992 Steven Henikoff and Jorja Henikoff created new substitution matrices based on local alignment of blocks

BLOcks SUbstitution Matrix

Idea: each protein domain can evolve at different speeds

BLOSUM62

   A  R  N  D  C  Q  E  G  H  I  L  K  M  F  P  S  T  W  Y  V  B  J  Z  X
A  4 -1 -2 -2  0 -1 -1  0 -2 -1 -1 -1 -1 -2 -1  1  0 -3 -2  0 -2 -1 -1 -1
R -1  5  0 -2 -3  1  0 -2  0 -3 -2  2 -1 -3 -2 -1 -1 -3 -2 -3 -1 -2  0 -1
N -2  0  6  1 -3  0  0  0  1 -3 -3  0 -2 -3 -2  1  0 -4 -2 -3  4 -3  0 -1
D -2 -2  1  6 -3  0  2 -1 -1 -3 -4 -1 -3 -3 -1  0 -1 -4 -3 -3  4 -3  1 -1
C  0 -3 -3 -3  9 -3 -4 -3 -3 -1 -1 -3 -1 -2 -3 -1 -1 -2 -2 -1 -3 -1 -3 -1
Q -1  1  0  0 -3  5  2 -2  0 -3 -2  1  0 -3 -1  0 -1 -2 -1 -2  0 -2  4 -1
E -1  0  0  2 -4  2  5 -2  0 -3 -3  1 -2 -3 -1  0 -1 -3 -2 -2  1 -3  4 -1
G  0 -2  0 -1 -3 -2 -2  6 -2 -4 -4 -2 -3 -3 -2  0 -2 -2 -3 -3 -1 -4 -2 -1
H -2  0  1 -1 -3  0  0 -2  8 -3 -3 -1 -2 -1 -2 -1 -2 -2  2 -3  0 -3  0 -1
I -1 -3 -3 -3 -1 -3 -3 -4 -3  4  2 -3  1  0 -3 -2 -1 -3 -1  3 -3  3 -3 -1
L -1 -2 -3 -4 -1 -2 -3 -4 -3  2  4 -2  2  0 -3 -2 -1 -2 -1  1 -4  3 -3 -1
K -1  2  0 -1 -3  1  1 -2 -1 -3 -2  5 -1 -3 -1  0 -1 -3 -2 -2  0 -3  1 -1
M -1 -1 -2 -3 -1  0 -2 -3 -2  1  2 -1  5  0 -2 -1 -1 -1 -1  1 -3  2 -1 -1
F -2 -3 -3 -3 -2 -3 -3 -3 -1  0  0 -3  0  6 -4 -2 -2  1  3 -1 -3  0 -3 -1
P -1 -2 -2 -1 -3 -1 -1 -2 -2 -3 -3 -1 -2 -4  7 -1 -1 -4 -3 -2 -2 -3 -1 -1
S  1 -1  1  0 -1  0  0  0 -1 -2 -2  0 -1 -2 -1  4  1 -3 -2 -2  0 -2  0 -1
T  0 -1  0 -1 -1 -1 -1 -2 -2 -1 -1 -1 -1 -2 -1  1  5 -2 -2  0 -1 -1 -1 -1
W -3 -3 -4 -4 -2 -2 -3 -2 -2 -3 -2 -3 -1  1 -4 -3 -2 11  2 -3 -4 -2 -2 -1
Y -2 -2 -2 -3 -2 -1 -2 -3  2 -1 -1 -2 -1  3 -3 -2 -2  2  7 -1 -3 -1 -2 -1
V  0 -3 -3 -3 -1 -2 -2 -3 -3  3  1 -2  1 -1 -2 -2  0 -3 -1  4 -3  2 -2 -1
B -2 -1  4  4 -3  0  1 -1  0 -3 -4  0 -3 -3 -2  0 -1 -4 -3 -3  4 -3  0 -1
J -1 -2 -3 -3 -1 -2 -3 -4 -3  3  3 -3  2  0 -3 -2 -1 -2 -1  2 -3  3 -3 -1
Z -1  0  0  1 -3  4  4 -2  0 -3 -3  1 -1 -3 -1  0 -1 -2 -2 -2  0 -3  4 -1
X -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
* -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4 -4
   *
A -4
R -4
N -4
D -4
C -4
Q -4
E -4
G -4
H -4
I -4
L -4
K -4
M -4
F -4
P -4
S -4
T -4
W -4
Y -4
V -4
B -4
J -4
Z -4
X -4
*  1

BLAST

The most common tool for local alignment is BLAST

Basic Local Alignment Search Tool

Uses an index to speed up the lookup of local alignments

You can choose the word size of the index.

BLAST is not Global Alignment
